Heavy Duty Sliding Gate Operator With 2 Remote Controls 1200W 2000Kg
Product Details:
Place of Origin: | China |
Brand Name: | GATECH |
Certification: | CE |
Model Number: | G20 |
Payment & Shipping Terms:
Minimum Order Quantity: | 50 |
---|---|
Price: | Negotiation |
Packaging Details: | Carton package |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 2000 sets per month |
Detail Information |
|||
Name: | Auto Gate Motor Slide | Open Style: | Sliding |
---|---|---|---|
Color: | Gray | Material: | Aluminum |
Type: | Entry Doors | Feature: | Waterproof |
Frame Finishing: | Powder Coated,Galvanized+PVC Coated | Frame Material: | Metal |
Opening Pattern: | Automatic | Metal Type: | Aluminum |
Surface Treatment: | Galvanized | Application: | Public Building |
Usage: | Construction Site | Size: | Width 27cmX Height 32cm |
Advantage: | Easy Life | Alarm Lighting: | Optional |
High Light: | 2 Remote Controls Sliding Gate Operator,1200W Heavy Duty Sliding Gate Motor,Galvanized Sliding Gate Operator |
Product Description

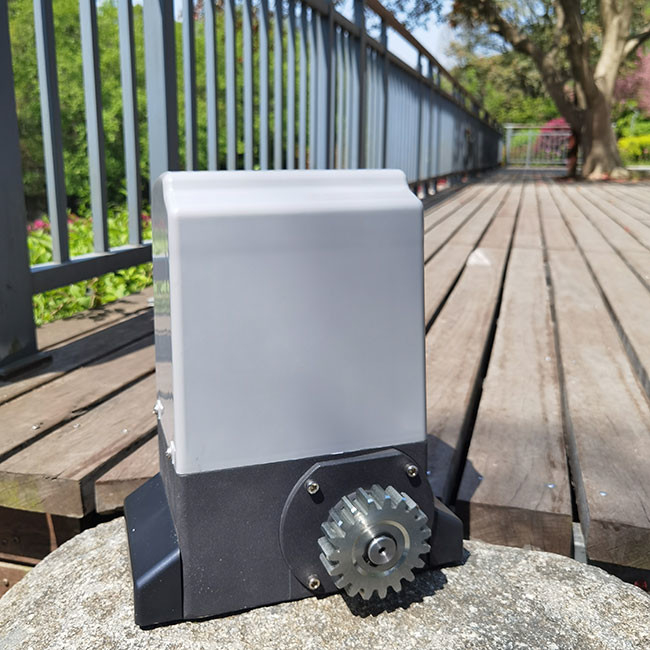

1200W 2000 kg Heavy Duty sliding gate operator with 2 remote controls
Specifications | G20 |
Power supply | 220V/50Hz;110V/60Hz |
Power of Motor | 1200W |
Output torque | 45Nm |
Operating Speed | 12m/min |
Maximum Gate length | 20m |
Shipping Mass of unit | 15.8kg |
Maximum Gate Mass | 2000kgs |
Specification:
1. Totally integrated electrical mechanical system (excludes racks).
2. Control board interface for optional impact-proof infrared photocells.
3. Can connect flashing light and keypad and electric lock and so on.
4. Automatic delayed closing.
5. Adjustable resistance sensitivity.
6. Auto gate stop and re-open when an obstacle is encountered.

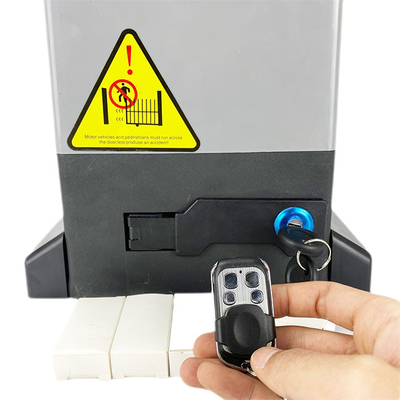

7. Wireless remote control or wired remote control are optional.
8. 24VDC sliding gate opener can connect transformer and back up battery.

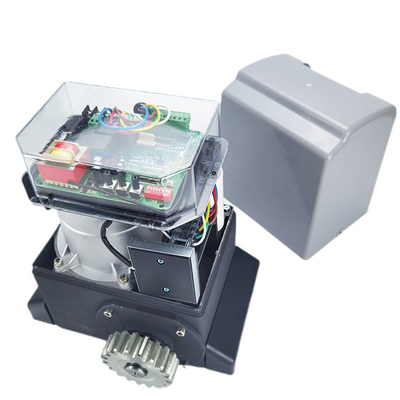

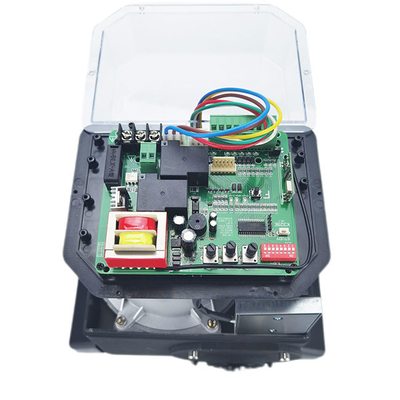

Control Board Function
One-button cycle control/three-button control optional
Alarm light interface
Adjustable auto-off time
pedestrian mode
apartment model
Limit switch NC/NO optional
Photocell NC/NO optional
On-off power button on board
Turn motor sensitivity settings on and off separately
The terminals are only used to open, only to close the external control device.
Adjustable Resistor Sensitivity
The door will automatically stop and reopen when an obstacle is encountered
Our sliding door motor has many advantages. Its dust cover can effectively block rainwater, insects and dust, which can greatly increase the service life of the motor. |
Using pure copper core, the resistance is small and the performance is strong. All raw materials are strictly controlled and kept improving to ensure the efficient operation of the motor. |

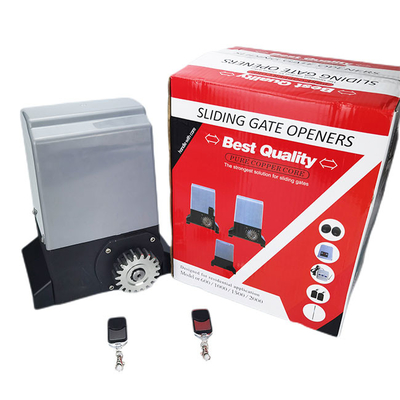

Parts List
1.Install backplane*1
2.Bracket*1
3.Expansion screw*4
4.Screw*4
5.Gasket*2
6.Magnet*2
7.Remote control*2
8.Clutch key*2
