Up to 600kg
SOLAR POWERED GATE KITS
Solar powered automatic gates are probably the ultimate
in convenience. Powered by battery there is no need to
worry when the mains goes out and no need to run cables.

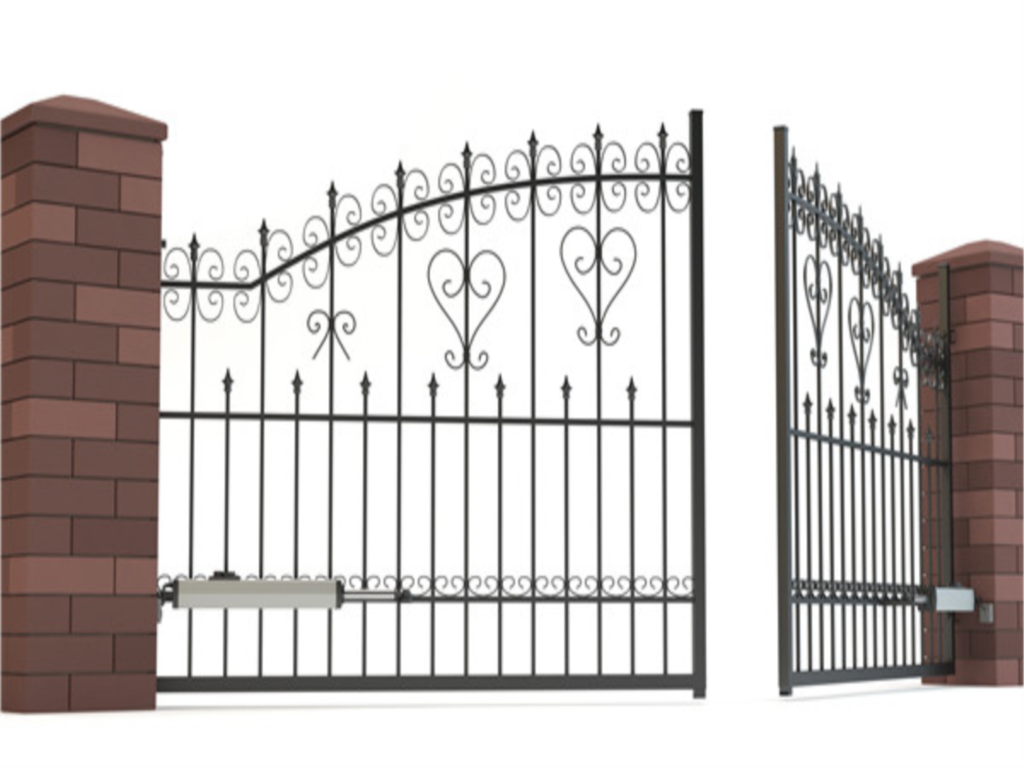

SOLAR SWING GATE OPENER KITS are widely used for
swing gate doors. Each leaf arm reach 300kg to open your doors.
Why choose solar?
There are many and varied reasons why someone will
choose solar to power their gate automation but the most
common is a simple lack of available mains power.
There are however many more advantages to choosing
solar power for your installation -
• FREE solar energy - Stored throughout
the day in the built-in battery
•24 hour power - no power failures
•Green and clean - Eco friendly option.
• DIY Installation - No Electrician required.
•No high cost of running power
• Safe - 24 volts
Automatic solar openers 600kg
220 V 50 Hz single-phase
24V DC (45W)
integrated in the control unit
Rod working stroke
12.96” (330 mm)
0.62sec (16 mm/s)
mechanical on opening/closing
Manual release operating
from -4°F (-20°C)to 131 °F (+ 55°C) IP44
Degree of protection
27.56 lbs (~12.5 kg)
Automatic solar openers kits
2 pair Photocell 4 pcs Remote controls
1 pcs Flash lamp 1 PCSolar charger

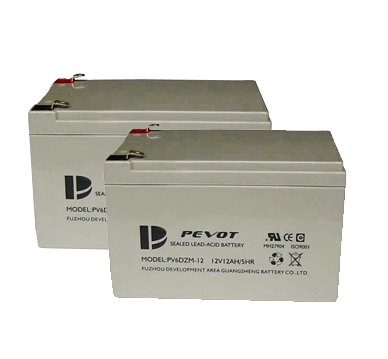

2 pcs Battery 12Ah 1 PC Solar panel
